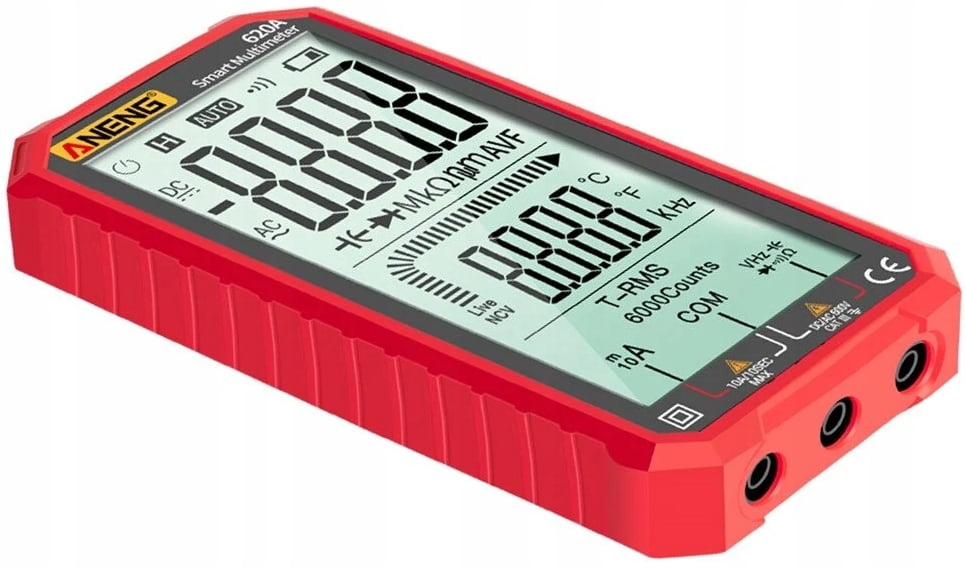

• Digital Multimeter Multimeter 620A

  Red

  The universal measuring device measures all basic electrical measurements.

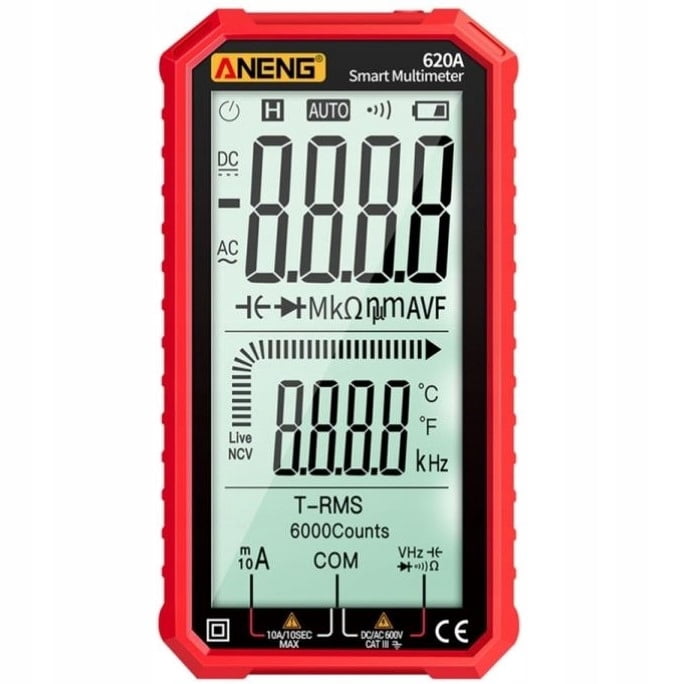

  This modern digital multimeter looks like a smartphone.

  It is equipped with a large backlit LCD display with a diagonal length of 4.7 inches and comes with many additional, very useful functions, such as automatic range setting or true RMS, etc.

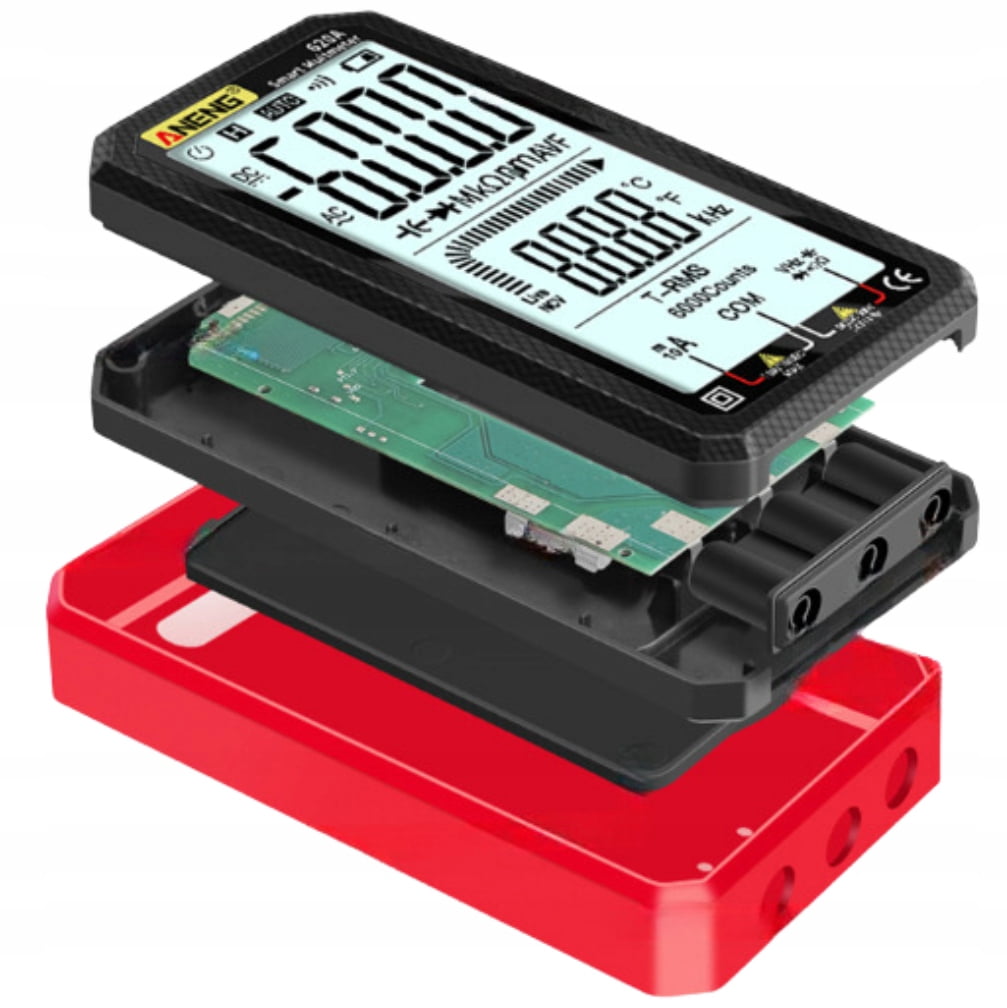

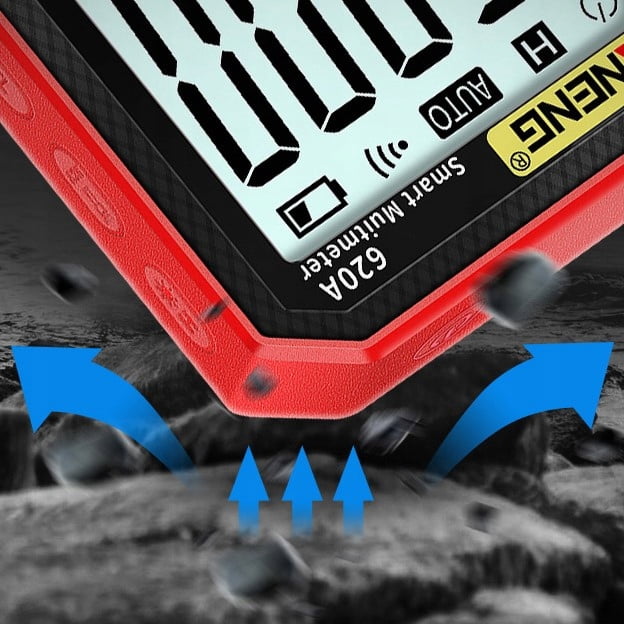

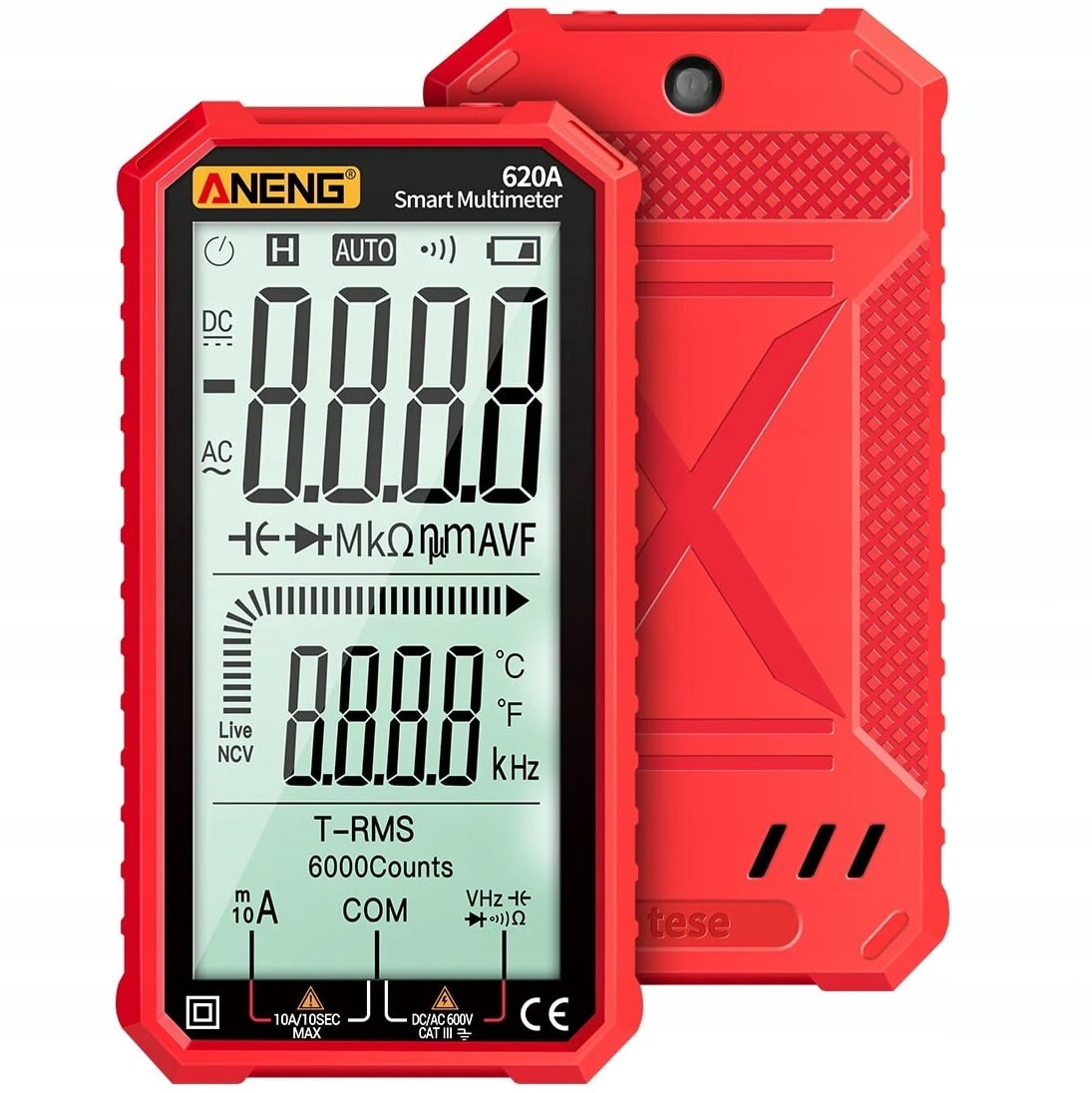

  It has overload protection, a shock-absorbing silicone case and an audible alarm.

  Due to its ability to accurately measure various electrical parameters and its many useful functions, this universal multimeter can be used in many fields, such as electronics, electrical engineering, diagnostics, maintenance, etc.

• Multiple measurement functions

  The universal multimeter Aneng 620a is equipped with many functions, making it an extremely useful device in diagnostic work:

  AC and DC voltage measurement

  Measurement of AC and DC currents

  Resistance measurement

  Diode testing

  Continuity measurement

  Capacity measurement

  temperature measurement

  frequency measurement

  The multimeter also has a large number of additional functions, greatly facilitating work and affecting its comfort:

  4.7-inch digital LCD display screen

  True effective value

  Automatic selection of measurement and range functions

  Polarity indication (automatic indication, '-' indicates negative electrode)

  Out of range indication ('0L 'or' -0L ')

  Low battery voltage indication (LCD display symbol)

  Automatically shut down after 15 minutes.

  Sound alarm

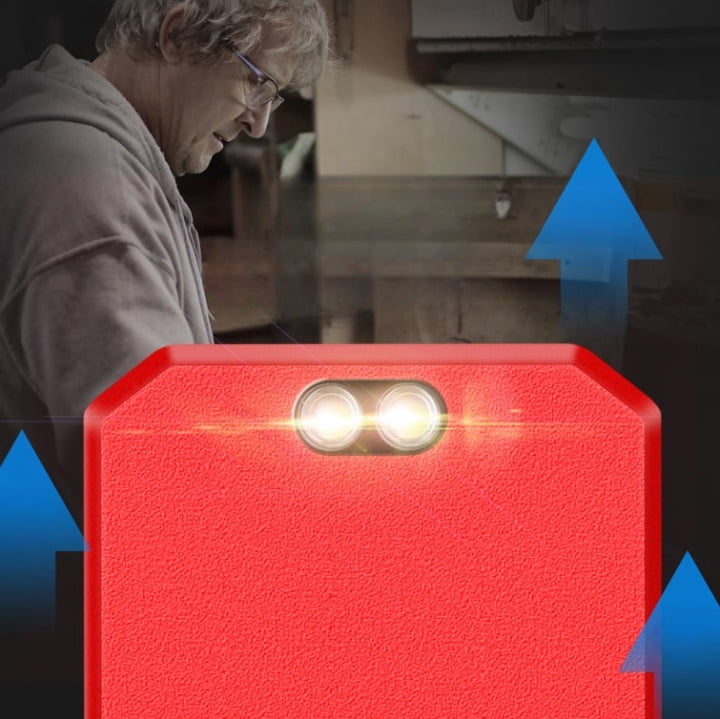

  Flashlight function

• power supply

  The 620a is powered by two AAA 1.5V batteries.

  Brightness (maximum)

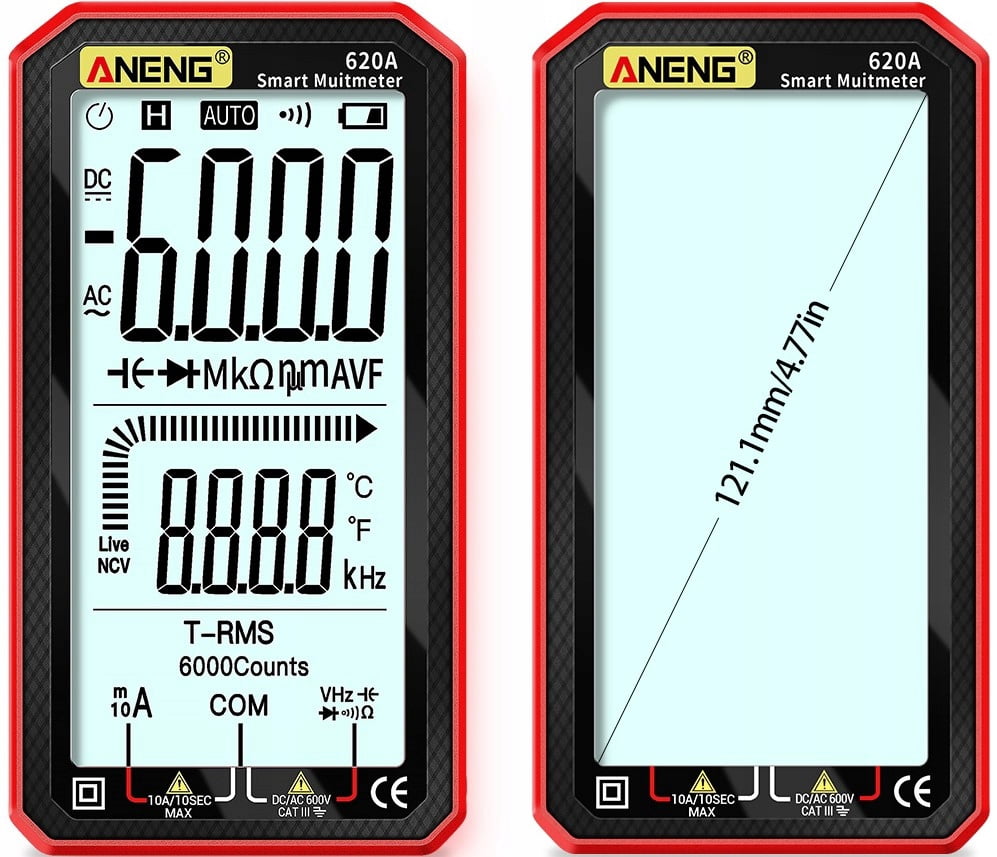

  The instrument is equipped with a 4.7-inch backlit LCD display screen, which can display measurement results.

  In addition, the instrument also has a flashlight function.

  Compact size

  This multimeter is small in size and lightweight, making it very convenient to use. You can carry it with you at any time.

• Specifications:

  DC voltage measurement: 6V/60V/600V (accuracy+-0.5%+3)

  AC voltage measurement: 6V/60V/600V (accuracy+-0,8%+5)

  AC current measurement: 6000mA/10A (accuracy+-1.0%+8)

  DC measurement: 6000mA/10A (accuracy+-1.0%+5)

  Resistance measurement: 600 Ω/6k Ω/60k Ω/600k Ω/6M Ω/60M Ω (accuracy+-0,8%+3)

  Temperature measurement: -40~1000 ℃/-40~1832 ℉ (accuracy+- (1%+3 ℃/F))

  Capacitance measurement: 6nF (accuracy+- (10%+40), 60nF/6uF/60uF/600uF/6mF/60mF (accuracy+- (2.5%+42))

  Frequency measurement: 100Hz/1000Hz (accuracy+- (1.0%+5))

  Maximum indication: 6000

  Display screen: 4.77 inch LCD

  Automatic shutdown time: 15 minutes

  Power supply: 2x 1.5V battery

  Material: ABS, silicone

  Dimensions: 140 x 75 x 22 (millimeters)

  Weight: 181 grams

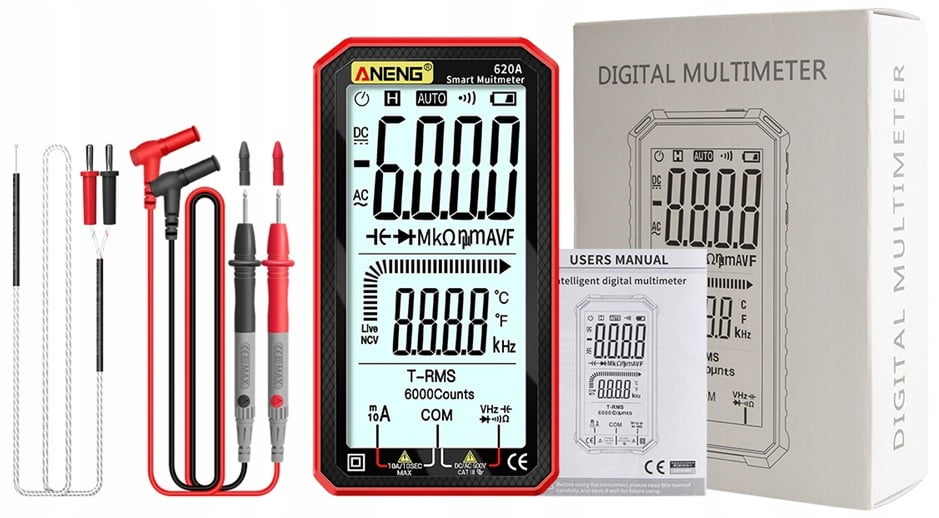

• Packaging content:

  1x Aneng 620a Multimeter

  1 set of measuring lines

  1 silicone sleeve (red)
