Package Includes:
(2) JBL 305P MkII 5" 2-Way Powered Studio Reference Monitor Monitoring Speaker
(1) Pair Rockville RRS190S Foam Studio Monitor Isolation Pads 7.5" x 9.5"/3 Angles
(2) Rockville RCXFM10P-B Black 10' Female to Male REAN XLR Mic/Speaker Cable
(1) Pair Technical Pro Black Studio Monitor Speaker Stands w/ Adjustable Height
JBL 305P MkII 5" 2-Way Powered Studio Reference Monitor
Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
Next-generation JBL transducers for optimized transient response and improved linearity
Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
Dual integrated, custom Class-D amplifiers provide 82 watts of power for high output and dynamic range
New Boundary EQ settings compensate for low frequency variants introduced by the environment
HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
Strenuous JBL 100-hour full-power test ensures years of reliability
Sleek, modern design provides a visual upgrade to any studio
Specifications:
LF Driver Size: 5" inches
HF Driver Size: 1" inch
HF Driver Type: Soft Dome
Crossover: 1725hz 4TH Order Acoustic Linkwitz-Riley
Input Sensitivity: 92 dB
Power Configuration: Bi-Amplified
HF Driver Power Amp: 41 Watts, Class-D
LF Driver Power Amp: 41 Watts, Class-D
Frequency Response (±3DB): 49 Hz – 20 kHz
Frequency Range (-10DB): 43 Hz – 24 kHz
Low Frequency Extension (-10 dB): 43 Hz
Maximum Continuous SPL: 94 dB
Maximum Peak SPL: 108 dB
Maximum Peak Input Level (-10DBV / +4DBU): +6DBV / +20.3DBU
System Distortion Criteria: <10% THD At Maximum Output With Full Compressor / Limiter Engagement
Electrical Distortion Criteria: 0.2% THD @ 1KHZ / 2.83vrms Output; <1% Thd @ 1KHZ, Full Rated Output
Signal To Noise Ratio: 75DBA (A-Weighted), 70DBR (Unweighted), Relative To 2.83vrms Output
Click here for the Owner's Manual
Video of RRS190S:
Features:
Rockville RRS190S: Monitor Isolation Pads
3 Angle High Density Foam
7.5" x 9.5"
Video of RCXFM10P-B:
Features:

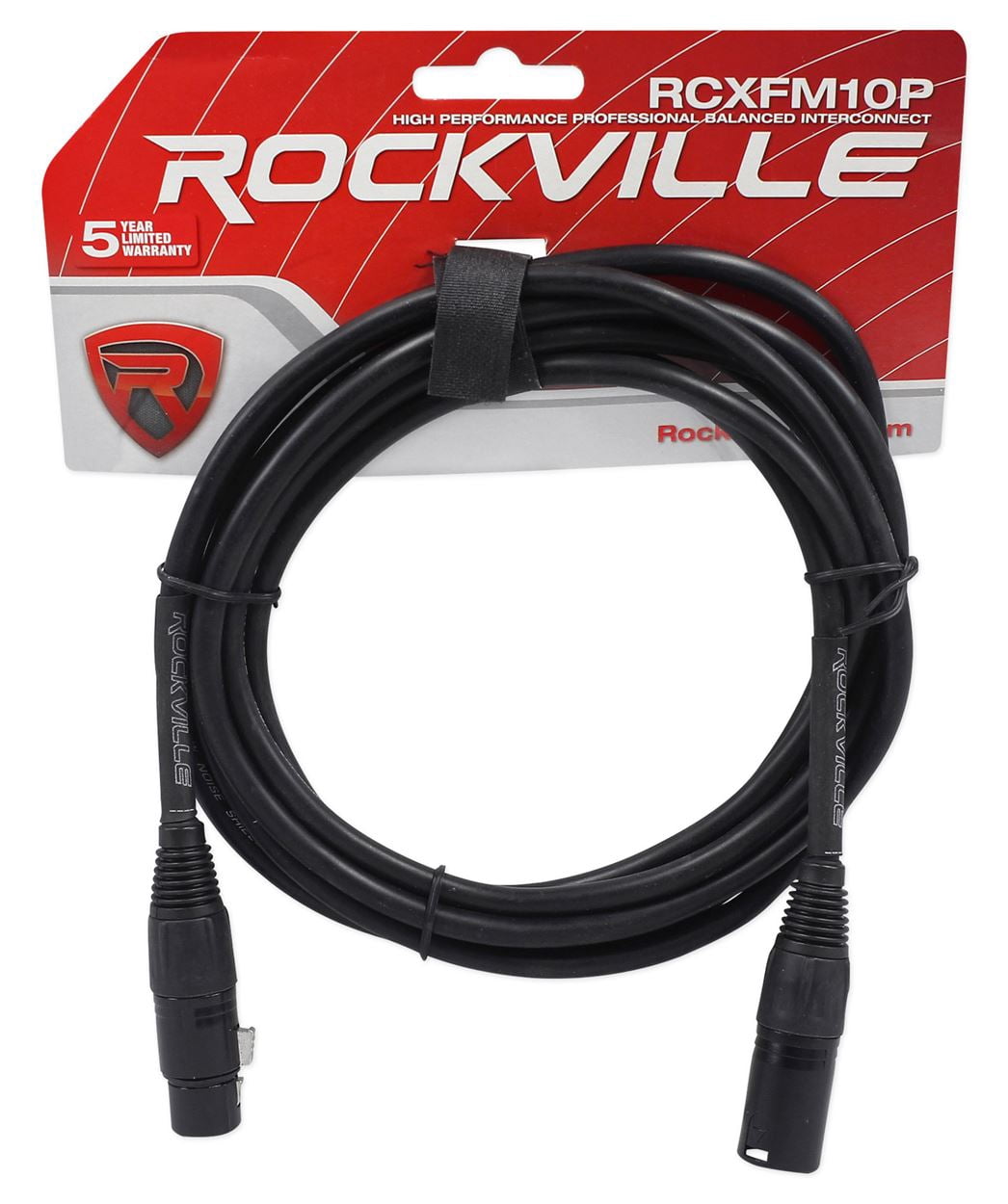

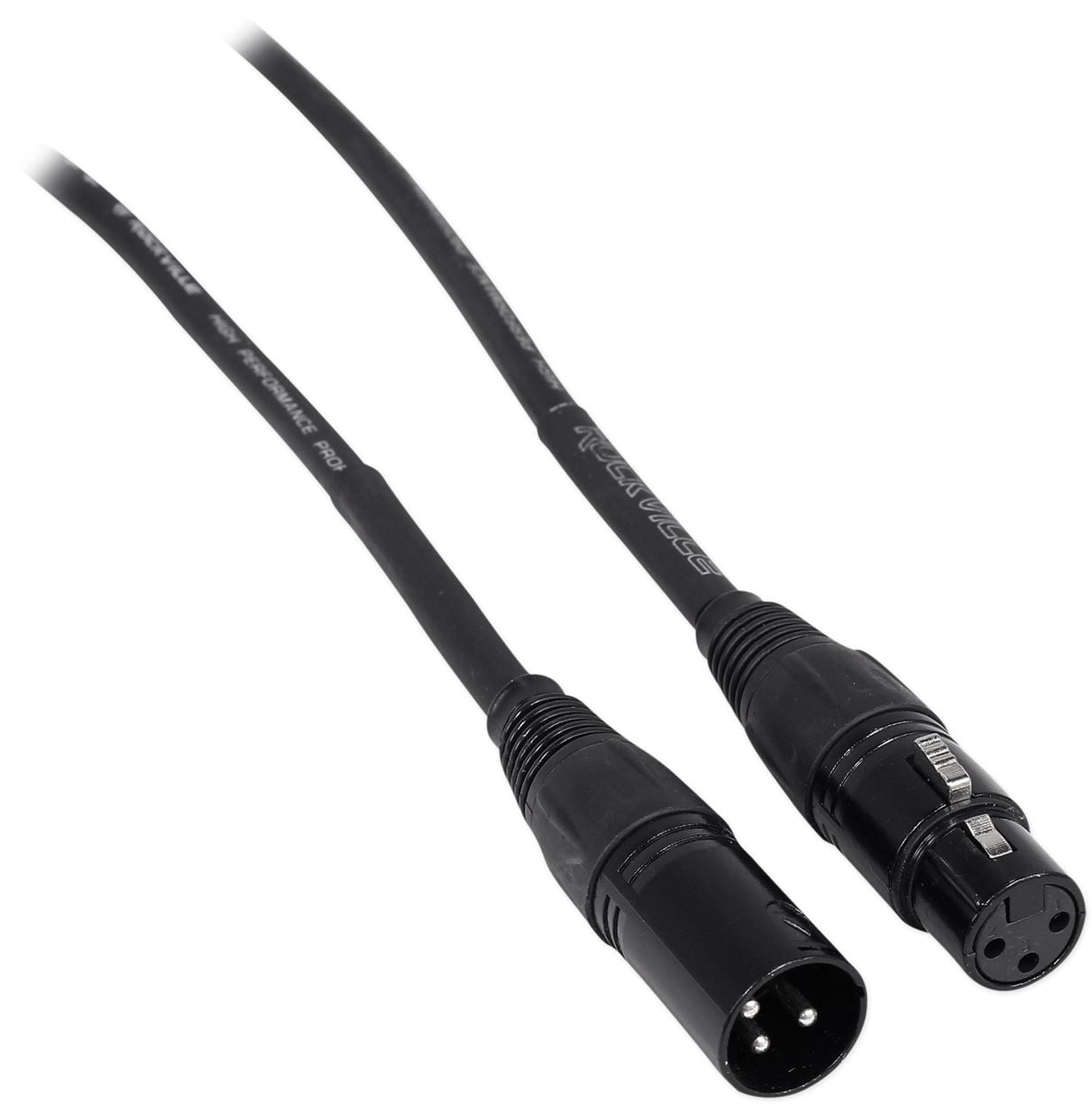

Rockville RCXFM10P-B Black 10 Foot Nickel Plated Female to Male REAN XLR Microphone Cable
XLR Connectors with Internal Strain Relief for Rugged Reliability
100% Copper Conductors for Enhanced Signal Clarity
90% OFC Spiral Shield for Effective EMI and RFI Rejection and Flexibility
Length 10 Ft
Color: Black
| Brand | JBL |
|---|---|
| Is powered | Y |
| Woofer size | 5 in |
| Rms power rating | 82 W |
| Features | Ported, Dual, Powered, High Output, High Frequency, Flexible, Adjustable Volume |
| Maximum sound pressure level | 108 dB |
| Freq range | 49 Hz 20 kHz |
| Color category | Black |
| Speaker size | 5 in |
| Material | Copper |
| Peak audio power handling | 82 W |
| Input/output quantity | 1 |
| Inputs/Outputs | XLR, 1/4 TRS |
| Accessories included | 2 x 305P MkII Studio Monitor, 1 x RRS190S Isolation Pad Pair, 2 x RCXFM10P-B XLR Cable, 1 x RVSM1 Monitor Stand Pair |
| Dimensions | 13.60 x 11.40 x 16.00 in |
| Assembled product weight | 44.35 lb |
| Channels | 2 |
| Model | 305PMKII |
| Pieces | 1 |
| Audio power amplifier class | Class D Amplifier |
| Input/output direction | Input |
| Instrument | Speaker |
| Volts | 240 V |
| Tweeter size | 1 in |
